Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as placing thermal vias under the device, using a solid ground plane, and keeping the device away from heat sources.
To ensure proper biasing during startup, it's recommended to follow the startup sequence outlined in the datasheet, which includes applying the input voltage before the enable signal. Additionally, a soft-start circuit can be implemented to reduce inrush current and prevent voltage overshoot.
The maximum capacitive load that can be driven by the TPS7H3302MDAPTSEP is not explicitly stated in the datasheet, but it's generally recommended to limit the output capacitance to 10uF or less to ensure stability. However, the actual capacitive load limit may vary depending on the specific application and operating conditions.
The TPS7H3302MDAPTSEP has built-in OVP and UVP features, but it's still recommended to implement external protection circuits to ensure robustness and reliability. This can include using external voltage supervisors, reset ICs, or other protection devices to detect and respond to voltage faults.
The recommended input filter configuration for the TPS7H3302MDAPTSEP typically includes a combination of capacitors and resistors to filter out noise and ripple. A common configuration is to use a pi-filter (C-R-C) or an LC filter, with component values selected based on the specific application and operating frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7H3302MDAPTSEP Overview

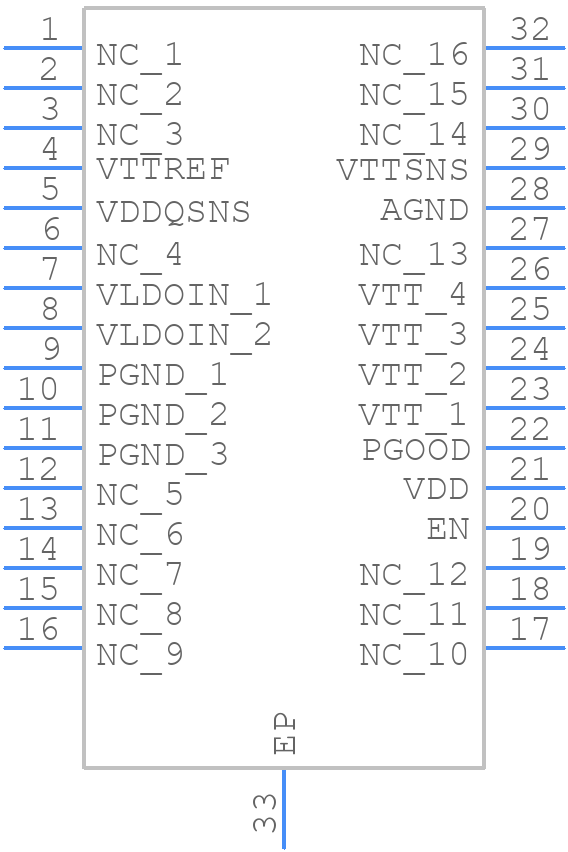

Use the download button to access the TPS7H3302MDAPTSEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7H,
or try a keyword search, such as Other Regulators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
