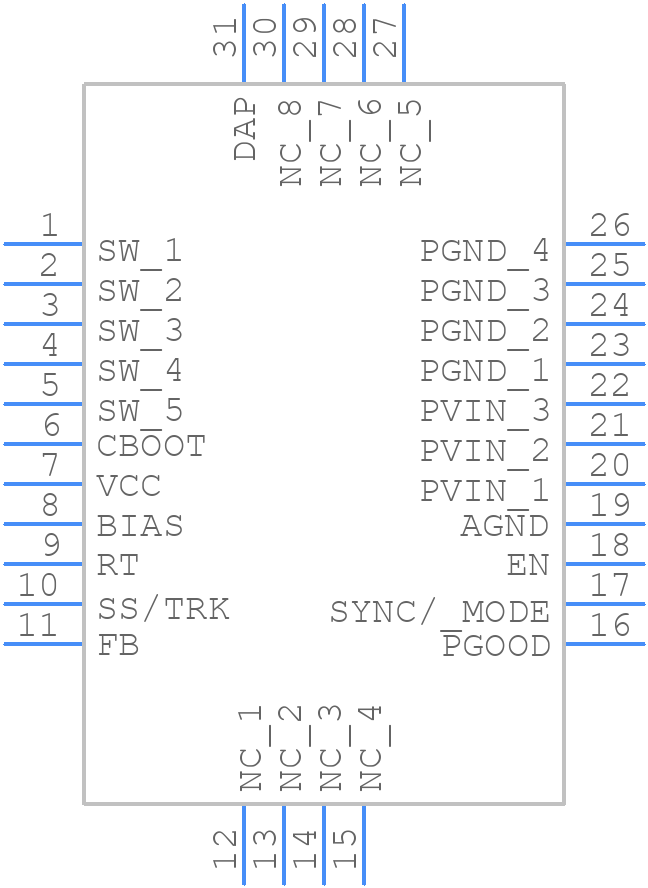

TPS7H4010MRNPTSEP - Texas Instruments

TPS7H4010MRNPTSEP Details

• Manufacturer Part Number:

  TPS7H4010MRNPTSEP

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2020-11-21

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  PFM CONROL ALSO POSSIBLE

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  32 V

• Input Voltage-Min:

  3.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PQCC-N30

• JESD-609 Code:

  e4

• Length:

  6 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  30

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  6 A

• Output Voltage-Max:

  30.4 V

• Output Voltage-Min:

  1 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC30,.16X.25,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2200 kHz

• Technology:

  BICMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Dose:

  20k Rad(Si) V

• Width:

  4 mm
