TPS82084SILT - Texas Instruments

Description: 2-A, High-Efficiency Step-Down Converter Module with Integrated Inductor

Download TPS82084SILT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

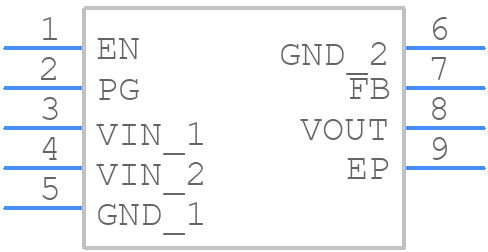

TPS82084SILT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS82084SILT - Texas Instruments PCB footprint - Other - Other - SIL0008C_3
click to zoom
3D Models
TPS82084SILT - Texas Instruments - 3D model - Other - SIL0008C_3
click to zoom

TPS82084SILT Details

  • Manufacturer Part Number:

    TPS82084SILT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ADJUSTABLE OUTPUT MODE FROM 0.8 TO 6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-XDMA-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.33 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.8 mm

TPS82084SILT Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the TPS82084SILT. Ensure a solid ground plane, keep the input and output capacitors close to the IC, and use a Kelvin connection for the sense pins. Refer to the TI application note SLVAE03 for more details.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. For the output capacitor, select a capacitor with a low ESR (Equivalent Series Resistance) and a capacitance value between 10uF to 22uF. Refer to the TI application note SLVAE03 for more details.
  • The maximum input voltage rating for the TPS82084SILT is 17V. However, it's recommended to operate within the specified input voltage range of 2.7V to 15V for optimal performance and reliability.
  • The output voltage can be adjusted by using a resistor divider network between the FB pin and the output voltage. The resistor values can be calculated using the formula provided in the datasheet or by using TI's online calculator tool.
  • The thermal shutdown temperature for the TPS82084SILT is typically around 150°C. The device will shut down when the junction temperature exceeds this value and will restart when the temperature drops below 140°C.
