A good PCB layout is crucial for the TPS82085SILR. TI recommends a 4-layer PCB with a solid ground plane, and the input and output capacitors should be placed close to the IC. The datasheet provides a recommended layout, but it's essential to follow good PCB design practices to minimize noise and ensure stability.
The choice of input and output capacitors is critical for the TPS82085SILR. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The capacitor selection should be based on the specific application requirements, such as ripple current, voltage rating, and temperature range.
The TPS82085SILR is rated for operation up to 85°C ambient temperature. However, it's essential to consider the thermal design and ensure that the IC is properly cooled to maintain reliable operation. A good thermal design should include a heat sink, thermal interface material, and adequate airflow.
To ensure stability and prevent oscillations, it's essential to follow the recommended PCB layout, choose the right input and output capacitors, and ensure that the output voltage is within the specified range. Additionally, the input voltage should be well-regulated, and the output should be decoupled with a capacitor to prevent oscillations.
The TPS82085SILR is rated for a maximum output current of 2A. However, the actual output current may be limited by the input voltage, output voltage, and thermal design. It's essential to consider the specific application requirements and ensure that the output current is within the specified range.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS82085SILR Overview

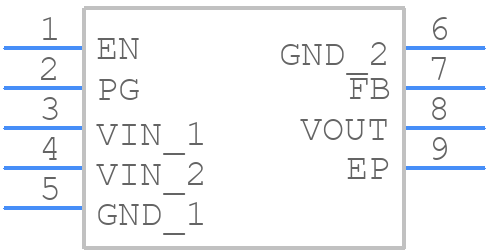

Use the download button to access the TPS82085SILR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS82,
or try a keyword search, such as Switching Regulator or Controllers
