TPS82150SILT - Texas Instruments

Description: 17V Input 1A Synchronous Step-Down Converter MicroSiP™ Module With Integrated Inductor

Download TPS82150SILT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

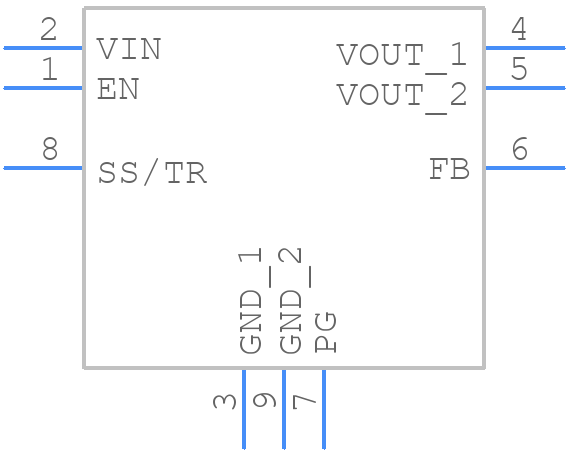

TPS82150SILT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS82150SILT - Texas Instruments PCB footprint - Other - Other - SIL0008D
click to zoom
3D Models
TPS82150SILT - Texas Instruments - 3D model - Other - SIL0008D
click to zoom

TPS82150SILT Details

  • Manufacturer Part Number:

    TPS82150SILT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    HEAT SINK AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2500 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.8 mm

TPS82150SILT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS82150SILT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input and output capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
  • The TPS82150SILT can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
  • To ensure stability, make sure the output capacitor has a low ESR and the output voltage is within the recommended range. Also, avoid using a capacitor with a high ESL (Equivalent Series Inductance) as it can cause oscillations. Additionally, ensure the input voltage is within the recommended range and the device is operated within the recommended temperature range.
  • Yes, the TPS82150SILT is a high-reliability device that meets the requirements of automotive and industrial applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability and performance in harsh environments.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS82150SILT Overview

Use the download button to access the TPS82150SILT schematic symbol, PCB footprint, and 3D model.
