Part Image

TPS826711SIPR - Texas Instruments

Description: 600mA Fully Integrated, Low Noise Step-Down Converter Module in MicroSiP™ Package

Download TPS826711SIPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

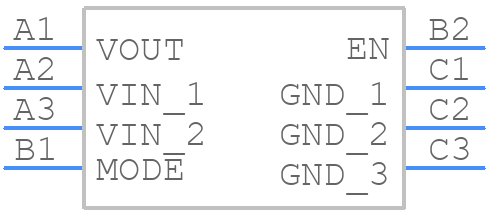

Symbol
TPS826711SIPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS826711SIPR - Texas Instruments PCB footprint - Other - Other - TPS826711SIPR-1
click to zoom
3D Models
TPS826711SIPR - Texas Instruments - 3D model - Other - TPS826711SIPR-1
click to zoom

TPS826711SIPR Details

  • Manufacturer Part Number:

    TPS826711SIPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO HAS CONTROL TECHNIQUE OF PFM

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    4.8 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    1.8 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,3X3,40/32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    6000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.3 mm

TPS826711SIPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS826711SIPR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The X5R or X7R dielectric is recommended for its stability over temperature.
  • The TPS826711SIPR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system.
  • Yes, the TPS826711SIPR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to consult with TI's application engineers to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the TPS826711SIPR, start by checking the PCB layout, input and output capacitor selection, and thermal design. Verify that the device is operated within its recommended specifications. Use oscilloscopes and thermal imaging cameras to identify the root cause of the issue. Consult TI's application notes and technical support resources for guidance.
