Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure stability, it's crucial to follow the recommended component values and PCB layout. Additionally, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a high-quality input capacitor. You can also add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
Although the datasheet specifies a maximum input voltage of 6V, it's recommended to limit the input voltage to 5.5V to ensure reliable operation and prevent damage to the IC. Exceeding the maximum input voltage can lead to reduced performance, increased power consumption, or even IC failure.
The TPS826716SIPT is rated for operation up to 125°C (TJ). However, it's essential to consider the IC's power dissipation, PCB thermal design, and surrounding component temperatures to ensure reliable operation. You may need to derate the output current or use additional thermal management techniques, such as heat sinks or thermal pads, to maintain a safe operating temperature.
The output voltage ripple and noise can be estimated using the equations provided in the datasheet. You'll need to consider the input voltage, output voltage, output current, and component values (e.g., output capacitor, inductor, and resistors). You can also use simulation tools, such as SPICE or TI's WEBENCH, to model and analyze the power supply's performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS826716SIPT Overview

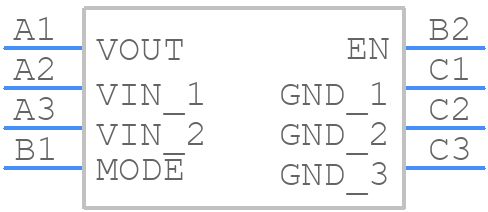

Use the download button to access the TPS826716SIPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS82,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
