Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the specific requirements of your application, such as the output current, switching frequency, and desired ripple current. Texas Instruments provides a list of recommended inductors in the datasheet, but you may need to consult with an inductor manufacturer or use an inductor selection tool to find the best option for your design.
The TPS826721SIPT is rated for operation up to 125°C, but the maximum ambient temperature depends on the specific application and the thermal design of the system. You should consult the thermal design guidelines in the datasheet and perform thermal simulations to ensure that the device operates within its recommended temperature range.
To ensure stability, you should follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, you should verify that the output voltage is within the recommended range, and that the input voltage is sufficient to support the output voltage. You can also use simulation tools, such as SPICE, to verify the stability of the design.
The minimum input voltage required for the TPS826721SIPT to operate is 2.7V, but the recommended input voltage range is 3.0V to 5.5V. Operating the device at the minimum input voltage may affect its performance and efficiency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS826721SIPT Overview

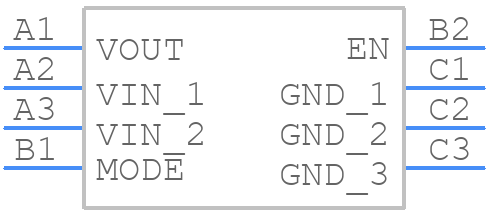

Use the download button to access the TPS826721SIPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS82,
or try a keyword search, such as Switching Regulator or Controllers
