TPS826745SIPR - Texas Instruments

Description: 600mA Fully Integrated, Low Noise Step-Down Converter in MicroSiP(TM) Package

Download TPS826745SIPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

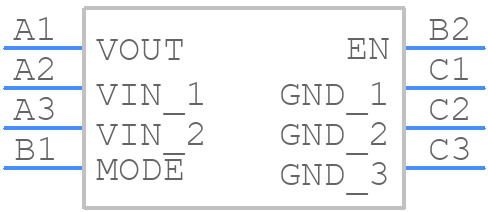

TPS826745SIPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS826745SIPR - Texas Instruments PCB footprint - BGA - BGA - SIP-8
click to zoom
3D Models
TPS826745SIPR - Texas Instruments - 3D model - BGA - SIP-8
click to zoom

TPS826745SIPR Details

  • Manufacturer Part Number:

    TPS826745SIPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    4.8 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    1.225 V

  • Output Voltage-Min:

    1.225 V

  • Output Voltage-Nom:

    1.225 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VBGA

  • Package Equivalence Code:

    BGA8,3X3,40/32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    6000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.3 mm

TPS826745SIPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS826745SIPR datasheet (section 10.2) and in the TPS82674EVM-001 evaluation module documentation. It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the output voltage. Refer to the datasheet (section 7.3.1) for more information.
  • The TPS826745SIPR has an absolute maximum input voltage rating of 6.5V. However, the recommended operating input voltage range is 3.5V to 5.5V. Exceeding the absolute maximum rating can damage the device.
  • The TPS826745SIPR has a built-in OCP and SCP feature. To implement it, connect the OCP pin to a resistor divider network that sets the current limit threshold. The SCP feature is enabled by default and will limit the output current to 2.5A. Refer to the datasheet (section 7.3.4) for more information.
  • The TPS826745SIPR has a thermal derating of 13.3mW/°C above 25°C. This means that the device's power dissipation capability decreases as the ambient temperature increases. Ensure that your design takes into account the thermal derating to prevent overheating and maintain reliable operation.
