TPS82676SIPT - Texas Instruments

Description: Non-Isolated PoL Module DC DC Converter 1 Output 1.1V 600mA 2.3V - 4.8V Input

Download TPS82676SIPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

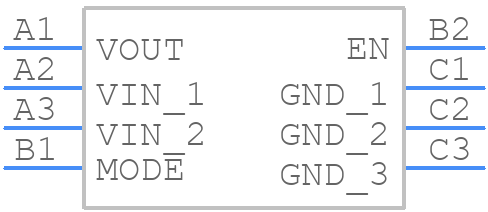

Symbol
TPS82676SIPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS82676SIPT - Texas Instruments PCB footprint - Other - Other - TPS82676SIPT-3
click to zoom
3D Models
TPS82676SIPT - Texas Instruments - 3D model - Other - TPS82676SIPT-3
click to zoom

TPS82676SIPT Details

  • Manufacturer Part Number:

    TPS82676SIPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO HAS CONTROL TECHNIQUE OF PFM

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    4.8 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    1.1 V

  • Output Voltage-Min:

    1.1 V

  • Output Voltage-Nom:

    1.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,3X3,40/32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    6000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.3 mm

TPS82676SIPT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS82676SIPT datasheet (section 10.2) and in the TPS82676SIPT Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) with a minimum capacitance of 10 μF and a voltage rating of at least 1.5 times the output voltage. Refer to the datasheet (section 7.3.1) for more information.
  • The TPS82676SIPT has an absolute maximum input voltage rating of 6.5 V. However, the recommended operating input voltage range is 2.7 V to 5.5 V. Exceeding the absolute maximum rating can damage the device.
  • The TPS82676SIPT has a built-in overcurrent protection feature. To implement OCP, connect a sense resistor (RSENSE) between the VIN pin and the GND pin. The device will limit the output current to the programmed value (set by the RSENSE resistor) to prevent damage from excessive current.
  • The TPS82676SIPT has a thermal derating of 12.5 mA/°C above 25°C. This means that for every 1°C increase in temperature above 25°C, the maximum output current rating decreases by 12.5 mA. Refer to the datasheet (section 6.3) for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS82676SIPT Overview

Use the download button to access the TPS82676SIPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS82, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
