TPS82697SIP - Texas Instruments

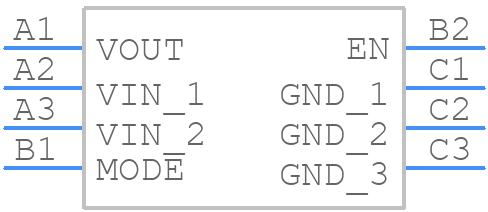

TPS82697SIP Details

• Manufacturer Part Number:

  TPS82697SIP

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SIP

• Package Description:

  2.30 X 2.90 MM, 1 MM HEIGHT, USIP-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  ALSO HAS A CONTROL TECHNIQUE OF PFM

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  4.8 V

• Input Voltage-Min:

  2.3 V

• Input Voltage-Nom:

  3.6 V

• JESD-30 Code:

  R-XBGA-B8

• Length:

  2.9 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.5 A

• Output Voltage-Max:

  2.964 V

• Output Voltage-Min:

  2.793 V

• Output Voltage-Nom:

  2.85 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VBGA

• Package Equivalence Code:

  BGA8,3X3,40/32

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  4400 kHz

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  2.3 mm
