TPS82698SIPR - Texas Instruments

Description: 700-mA, High-Efficiency MicroSiP™ Step-Down Converter (PROFILE <1mm)

Download TPS82698SIPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

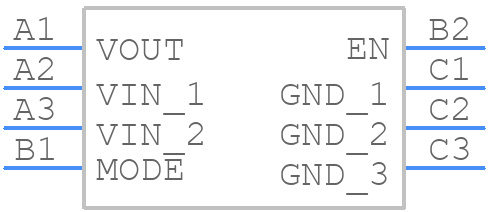

TPS82698SIPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS82698SIPR - Texas Instruments PCB footprint - Other - Other - TPS82698SIPR-2
click to zoom
3D Models
TPS82698SIPR - Texas Instruments - 3D model - Other - TPS82698SIPR-2
click to zoom

TPS82698SIPR Details

  • Manufacturer Part Number:

    TPS82698SIPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    4.8 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Output Voltage-Max:

    3 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VBGA

  • Package Equivalence Code:

    BGA8,3X3,40/32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.3 mm

TPS82698SIPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS82698SIPR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The datasheet provides more information on capacitor selection.
  • The TPS82698SIPR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system.
  • Yes, the TPS82698SIPR is designed to operate in high-vibration environments. However, it's crucial to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • TI provides a troubleshooting guide in the datasheet and application notes. Common issues can be resolved by checking the input voltage, output load, and PCB layout. In some cases, it may be necessary to use an oscilloscope to analyze the output voltage and current.
