TPS82740BSIPT - Texas Instruments

Description: 200-mA Step Down Converter MicroSiP Module with 360nA quiescent current

Download TPS82740BSIPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

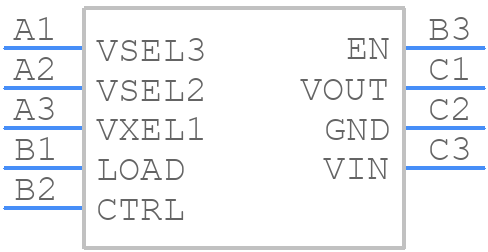

Symbol
TPS82740BSIPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS82740BSIPT - Texas Instruments PCB footprint - Other - Other - SIP0009F
click to zoom
3D Models
TPS82740BSIPT - Texas Instruments - 3D model - Other - SIP0009F
click to zoom

TPS82740BSIPT Details

  • Manufacturer Part Number:

    TPS82740BSIPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE, ALSO OPERATES IN ADJUSTABLE MODE FROM 1.8 TO 2.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.2 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B9

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    2.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1200 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.3 mm

TPS82740BSIPT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS82740BSIPT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with the selection process.
  • The TPS82740BSIPT is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • Yes, the TPS82740BSIPT is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the device is properly soldered to withstand the vibrations. TI provides guidance on vibration testing and PCB design in the datasheet and application notes.
  • TI provides a troubleshooting guide in the datasheet and application notes. Common issues can be resolved by checking the input voltage, output load, and PCB layout. In some cases, it may be necessary to use an oscilloscope to analyze the output voltage and current waveforms.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS82740BSIPT Overview

Use the download button to access the TPS82740BSIPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS82, or try a keyword search, such as Switching Regulator or Controllers
