SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
15.6 V
Supply Voltage-Min (Vsup):
2.6 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS8804DCPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPS8804DCPR datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a layout guide for DC/DC converters that can be helpful.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. Texas Instruments provides a list of recommended inductors in the datasheet, and also offers an inductor selection guide on their website. Additionally, the TI Power Designer software can be used to simulate and optimize the inductor selection.
The TPS8804DCPR has a maximum ambient operating temperature of 85°C, but it can be derated for higher temperatures. The datasheet provides a thermal derating curve that shows the maximum junction temperature and power dissipation at different ambient temperatures.
Yes, the TPS8804DCPR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices, and is also suitable for industrial and medical applications that require high reliability.
Texas Instruments provides a troubleshooting guide for the TPS8804DCPR in the datasheet, which covers common issues and their possible causes. Additionally, the TI website offers a knowledge base and a forum where engineers can ask questions and get help from TI experts and other users.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS8804DCPR Overview

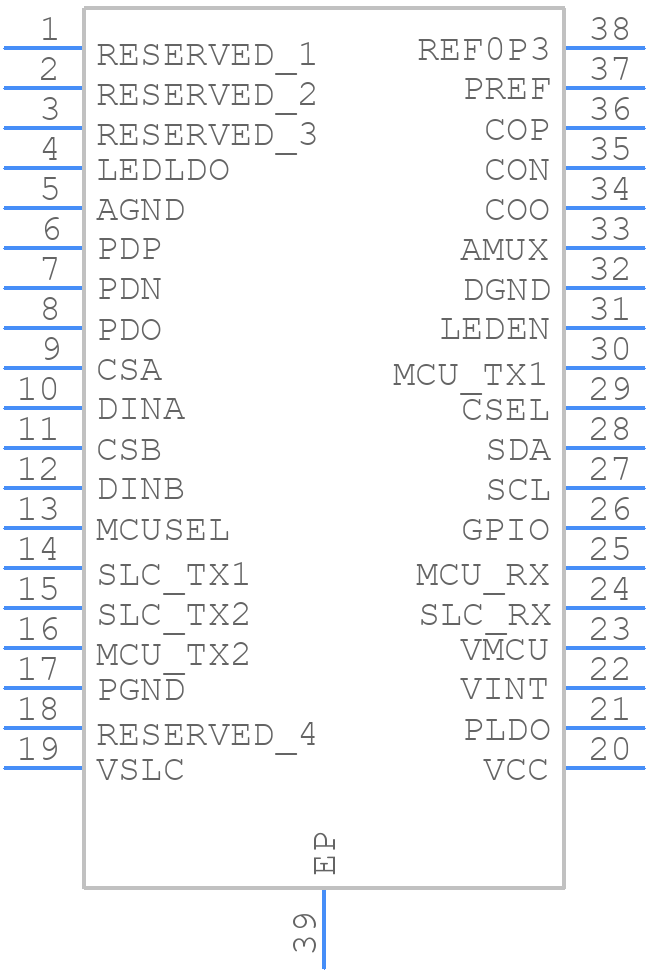

Use the download button to access the TPS8804DCPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS88,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
