Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas. Additionally, TI recommends using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The selection of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The X5R or X7R dielectric type is recommended for their stability over temperature. Additionally, consider the voltage rating, ripple current rating, and physical size of the capacitors.
The maximum ambient temperature for the TPS922053DRRR is 85°C. As the ambient temperature increases, the device's performance may degrade, and the output voltage may drop. It's essential to ensure good airflow and heat dissipation to maintain the device's performance within the specified temperature range.
The TPS922053DRRR does not have built-in OVP and UVP. However, you can implement external OVP and UVP circuits using zener diodes, resistors, and comparators. TI provides application notes and reference designs that demonstrate how to implement OVP and UVP for the device.
The recommended input voltage range for the TPS922053DRRR is 2.7V to 5.5V. Operating the device outside this range may affect its performance, efficiency, and reliability. Ensure that the input voltage is within the specified range to maintain the device's performance and prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS922053DRRR Overview

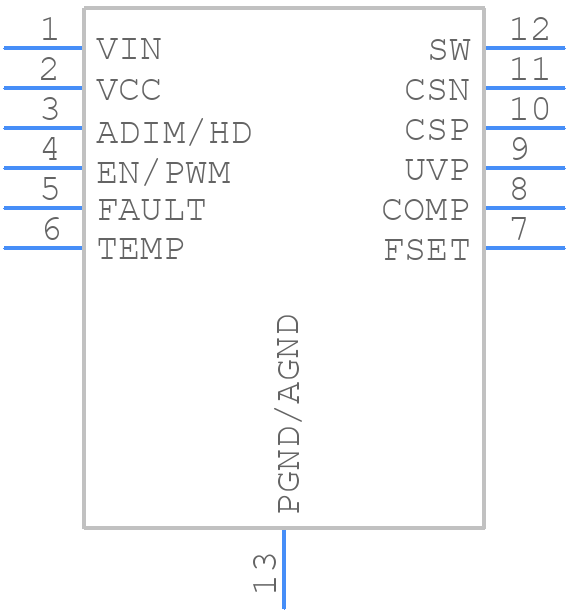

Use the download button to access the TPS922053DRRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
