SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Supply Current-Max:
4.6 mA
Supply Voltage-Max:
65 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Supply Voltage1-Max:
65 V
Supply Voltage1-Min:
4.5 V
Supply Voltage1-Nom:
5 V
Surface Mount:
YES
Technology:
BICMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3 mm
fmax-Min:
0.156 MHz
TPS922054DMTR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPS922054DMTR datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, minimizing thermal resistance, and keeping the device away from heat sources.
To ensure reliable operation in high-temperature environments, it's crucial to follow the recommended operating temperature range (–40°C to 150°C), use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
The maximum allowed voltage on the input pins is 6V, as specified in the datasheet. Exceeding this voltage can damage the device. It's essential to ensure that the input voltage does not exceed this limit, even during power-up or power-down sequences.
The TPS922054DMTR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, grounding straps, and follow recommended handling techniques to prevent damage.
The recommended capacitor value for the output filter depends on the specific application and desired output ripple. A general guideline is to use a capacitor with a value between 10uF to 100uF, with a voltage rating that exceeds the output voltage. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS922054DMTR Overview

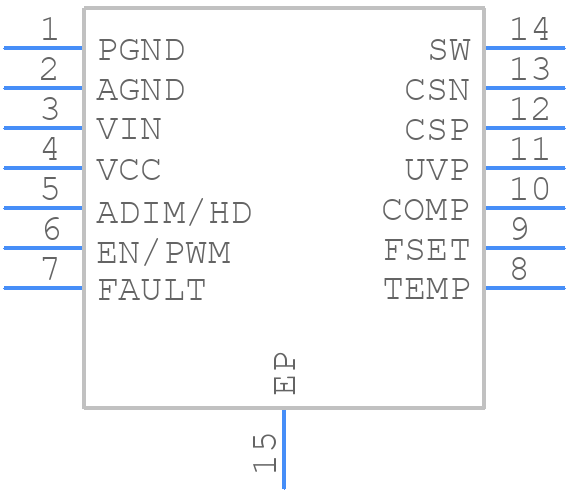

Use the download button to access the TPS922054DMTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
