A good PCB layout for the TPS92314ADR/NOPB involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The inductor value depends on the input voltage, output voltage, and output current. A good starting point is to use the inductor value recommended in the datasheet. You can also use the following formula: L = (VIN - VOUT) / (ΔI * f * ΔIL), where ΔI is the desired ripple current, f is the switching frequency, and ΔIL is the inductor ripple current.
The maximum ambient temperature range for the TPS92314ADR/NOPB is -40°C to 125°C. However, the device's performance and reliability may degrade at temperatures above 85°C. It's recommended to use a heat sink or a thermal pad to keep the device temperature below 85°C.
Yes, the TPS92314ADR/NOPB is a high-reliability device that meets the requirements of various industries, including automotive, industrial, and medical. It's manufactured using a robust process and is tested to ensure high reliability and low defect rates.
To troubleshoot issues with the TPS92314ADR/NOPB, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for voltage spikes, ringing, or oscillations. Check the PCB layout and component placement to ensure they meet the recommended guidelines. If the issue persists, consult the datasheet and application notes or contact Texas Instruments' support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92314ADR/NOPB Overview

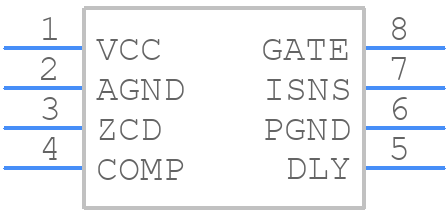

Use the download button to access the TPS92314ADR/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
