Texas Instruments provides a recommended PCB layout in the TPS92314 evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The selection of the inductor depends on the specific application requirements, such as output voltage, current, and switching frequency. Texas Instruments provides an inductor selection guide in the TPS92314 datasheet, which includes formulas and guidelines to help engineers choose the right inductor for their design.
The maximum junction temperature of the TPS92314 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Yes, the TPS92314 is rated for operation up to 125°C ambient temperature, making it suitable for high-temperature environments. However, the device's performance and reliability may be affected at high temperatures, and additional thermal management may be required.
Texas Instruments provides a troubleshooting guide in the TPS92314 datasheet, which includes common issues, possible causes, and recommended solutions. Additionally, engineers can use simulation tools, such as TI's WEBENCH Power Designer, to simulate and analyze their design before prototyping.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92314DR/NOPB Overview

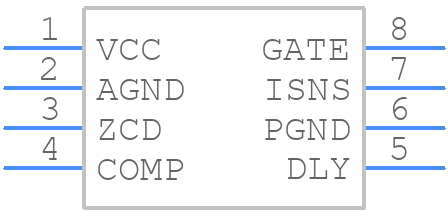

Use the download button to access the TPS92314DR/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
