A good PCB layout is crucial for the TPS92411PDDAR. TI recommends a 4-layer PCB with a solid ground plane, and the use of thermal vias to connect the thermal pad to the ground plane. Additionally, keep the input and output capacitors close to the device, and use short, wide traces for the power paths.
Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. For the input capacitor, a 10uF to 22uF capacitor is recommended, while for the output capacitor, a 10uF to 47uF capacitor is suitable. Ensure the capacitors are placed close to the device and have a low ESL and ESR.
The maximum ambient temperature for the TPS92411PDDAR is 85°C. However, the device can operate up to 125°C junction temperature. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the TPS92411PDDAR is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure you follow the recommended PCB layout, thermal design, and component selection guidelines to meet the required reliability standards.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout, component selection, and thermal design. Use an oscilloscope to analyze the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92411PDDAR Overview

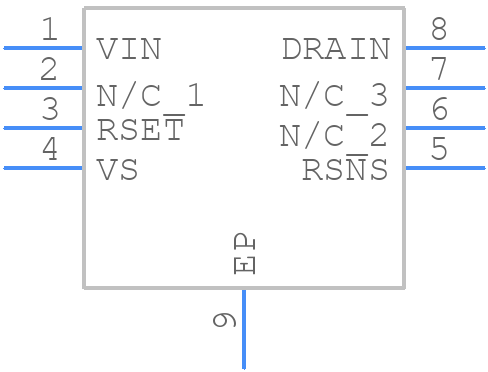

Use the download button to access the TPS92411PDDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
