TPS92510DGQ - Texas Instruments

Description: TEXAS INSTRUMENTS - TPS92510DGQ - Led Driver, 1 Output, Buck (Step Down), 3.5V-60V in, 2.5MHz switch, 58V/1.5A out, HVSSOP-10

Download TPS92510DGQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

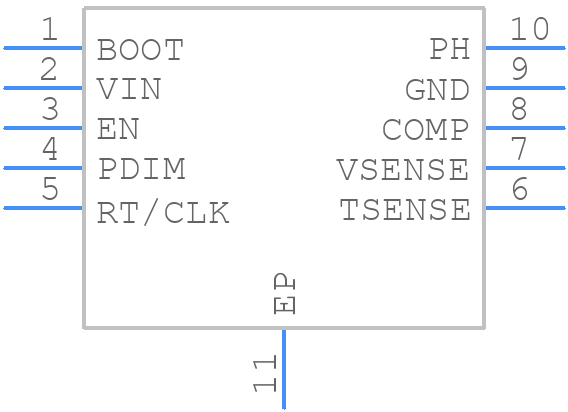

TPS92510DGQ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS92510DGQ - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ(S-PDSO-G10)
click to zoom
3D Models
TPS92510DGQ - Texas Instruments - 3D model - Small Outline Packages - DGQ(S-PDSO-G10)
click to zoom

TPS92510DGQ Details

  • Manufacturer Part Number:

    TPS92510DGQ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    0.001 MHz

TPS92510DGQ Frequently Asked Questions (FAQs)

  • The TPS92510DGQ can handle a maximum input voltage of 60V, but it's recommended to operate within the specified input voltage range of 12V to 42V for optimal performance and reliability.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines in the datasheet, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, ensure that the input voltage is within the specified range and that the device is operated within the recommended temperature range.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing or to turn the device on and off as needed.
  • The output voltage of the TPS92510DGQ is determined by the resistor divider network connected to the FB (feedback) pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The TPS92510DGQ can deliver a maximum output current of 2A, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and reliability.
