TPS92513HVDGQR - Texas Instruments

Description: 1.5-A Buck LED Driver with Integrated Analog Current Adjust

Download TPS92513HVDGQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

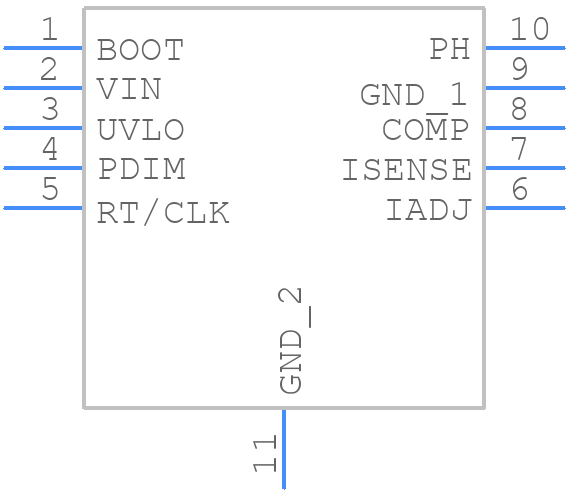

Symbol
TPS92513HVDGQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS92513HVDGQR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ (S-PDSO-G10)
click to zoom
3D Models
TPS92513HVDGQR - Texas Instruments - 3D model - Small Outline Packages - DGQ (S-PDSO-G10)
click to zoom

TPS92513HVDGQR Details

  • Manufacturer Part Number:

    TPS92513HVDGQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.407 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    60 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS92513HVDGQR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS92513HVDGQR is 60V, but it's recommended to operate within the specified input voltage range of 12V to 42V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the output capacitor.
  • The maximum output current that the TPS92513HVDGQR can deliver is 3A, but it's recommended to operate within the specified output current range of 0A to 2A for optimal performance and reliability.
  • The TPS92513HVDGQR has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features to protect the device from overcurrent and overheating. Additionally, it's recommended to use a suitable input capacitor, ensure good thermal design, and follow the recommended layout guidelines to prevent overheating.
  • The TPS92513HVDGQR is rated for operation up to 150°C, but it's recommended to operate within the specified temperature range of -40°C to 125°C for optimal performance and reliability. It's essential to ensure good thermal design and follow the recommended layout guidelines to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS92513HVDGQR Overview

Use the download button to access the TPS92513HVDGQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92, or try a keyword search, such as Display Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
