SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Current-Max:
4 mA
Supply Voltage-Max:
42 V
Supply Voltage-Min:
6.5 V
Supply Voltage-Nom:
14 V
Supply Voltage1-Max:
42 V
Supply Voltage1-Min:
6.5 V
Supply Voltage1-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
fmax-Min:
2 MHz
TPS92518QPWPRQ1 Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS92518QPWPRQ1 is 40V, but it's recommended to operate within the recommended input voltage range of 12V to 36V for optimal performance.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the recommended range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the output capacitor.
The maximum output current that the TPS92518QPWPRQ1 can deliver is 1.5A, but it's recommended to operate within the recommended output current range of 0.5A to 1.2A for optimal performance and to prevent overheating.
To protect the TPS92518QPWPRQ1 from overheating, it's essential to ensure good thermal conductivity between the device and the PCB, use a suitable heat sink, and operate the device within the recommended temperature range of -40°C to 125°C. Additionally, the device has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C.
Yes, the TPS92518QPWPRQ1 is suitable for high-reliability applications due to its high MTBF (Mean Time Between Failures) rating and its compliance with various industry standards, such as AEC-Q100 and IEC 62368. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device operates within the specified parameters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92518QPWPRQ1 Overview

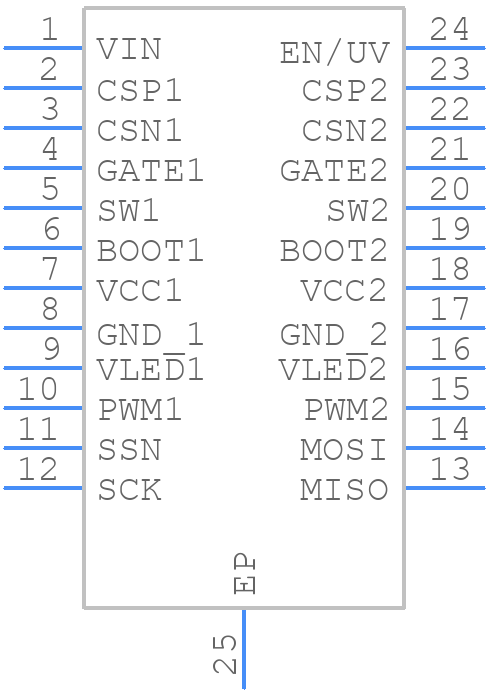

Use the download button to access the TPS92518QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
