TPS92561DGNR - Texas Instruments

Description: Phase Dimmable, Single Stage Boost Controller for LED Lighting

Download TPS92561DGNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

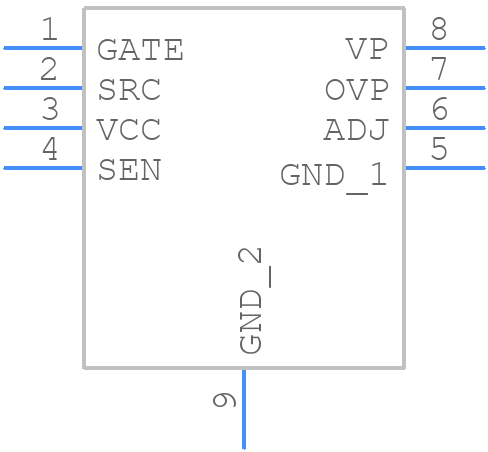

TPS92561DGNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS92561DGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008G
click to zoom
3D Models
TPS92561DGNR - Texas Instruments - 3D model - Small Outline Packages - DGN0008G
click to zoom

TPS92561DGNR Details

  • Manufacturer Part Number:

    TPS92561DGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage-Max:

    42 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    42 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS92561DGNR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS92561DGNR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors for the TPS92561DGNR depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with the selection process.
  • The TPS92561DGNR has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a higher temperature range with derating. Refer to the datasheet for more information on temperature derating.
  • Yes, the TPS92561DGNR is suitable for high-reliability applications. It is built with high-reliability materials and has undergone rigorous testing to ensure its performance and reliability. TI also provides a reliability report for the device.
  • Troubleshooting issues with the TPS92561DGNR involves checking the input voltage, output voltage, and current consumption. TI provides a troubleshooting guide in the datasheet and application notes. Additionally, engineers can use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
