TPS92613QNDRRQ1 - Texas Instruments

Description: Automotive Single-Channel LED Driver

Download TPS92613QNDRRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

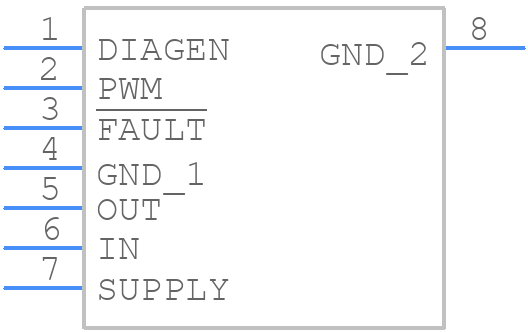

Symbol
TPS92613QNDRRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS92613QNDRRQ1 - Texas Instruments PCB footprint - Other - Other - TPS92613QNDRRQ1-1
click to zoom
3D Models
TPS92613QNDRRQ1 - Texas Instruments - 3D model - Other - TPS92613QNDRRQ1-1
click to zoom

TPS92613QNDRRQ1 Details

  • Manufacturer Part Number:

    TPS92613QNDRRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-11-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-263

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.25 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.85 mm

TPS92613QNDRRQ1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Use the Texas Instruments WEBENCH Power Designer tool to configure the device for your specific application. The tool provides a step-by-step guide to selecting the correct components and settings.
  • The maximum ambient temperature range for the TPS92613QNDRRQ1 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures.
  • Yes, the TPS92613QNDRRQ1 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required to meet specific industry standards.
  • Use an oscilloscope to monitor the device's input and output voltages, as well as the current sense pins. Check for proper PCB layout, component selection, and thermal design. Consult the datasheet and application notes for troubleshooting guidelines.
