TPS92620QDRRRQ1 - Texas Instruments

Description: LED Driver IC 1 Output Linear PWM Dimming 150mA SOT-23-5

Download TPS92620QDRRRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

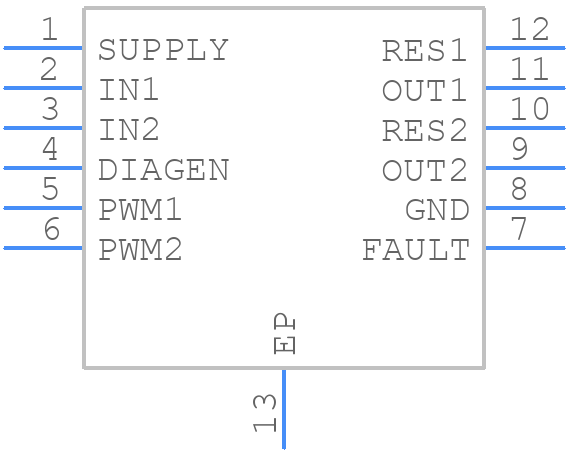

TPS92620QDRRRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS92620QDRRRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRR0012C
click to zoom
3D Models
TPS92620QDRRRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRR0012C
click to zoom

TPS92620QDRRRQ1 Details

  • Manufacturer Part Number:

    TPS92620QDRRRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Segments:

    6

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    40 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS92620QDRRRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS92620QDRRRQ1 datasheet (section 10.2) and in the application note SLUAAC4. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. TI recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage. Refer to the datasheet (section 7.3) for more information.
  • The maximum output current of the TPS92620QDRRRQ1 is 2A. However, the actual output current may be limited by the thermal performance of the device, PCB layout, and input voltage. It's essential to ensure the device operates within the recommended operating conditions to avoid overheating.
  • The TPS92620QDRRRQ1 is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure the device operates within the recommended operating conditions and to consider thermal management techniques to maintain a safe junction temperature.
