Texas Instruments provides a recommended PCB layout in the TPS92622QDRRRQ1 datasheet (Section 10.2) and in the application note SLUA623. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
The input capacitor selection depends on the input voltage, output voltage, and output current. TI recommends using a low-ESR ceramic capacitor with a minimum capacitance of 10 μF and a voltage rating of at least 1.5 times the input voltage. Refer to the datasheet (Section 7.3) for more information.
The maximum output current of the TPS92622QDRRRQ1 is 2 A. However, the actual output current may be limited by the thermal performance of the device, PCB layout, and ambient temperature. Be sure to check the thermal derating curves in the datasheet (Section 6.3) to ensure the device operates within its recommended specifications.
The TPS92622QDRRRQ1 is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. Be sure to check the thermal derating curves and ensure the device operates within its recommended specifications. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
The TPS92622QDRRRQ1 has a built-in overcurrent protection (OCP) feature that limits the output current to prevent damage. The OCP threshold is set internally, but you can adjust it using an external resistor (RILIM) connected to the ILIM pin. Refer to the datasheet (Section 7.4) for more information on implementing OCP.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92622QDRRRQ1 Overview

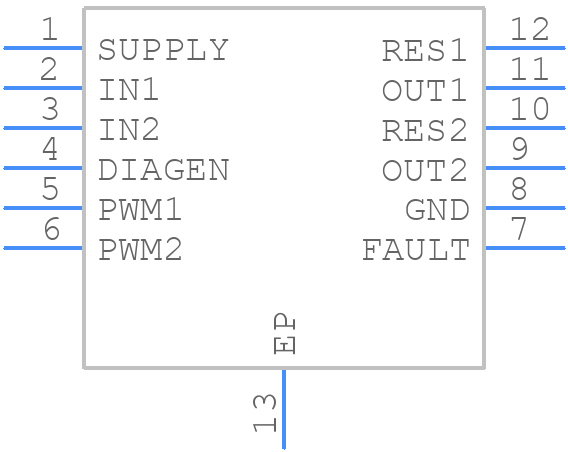

Use the download button to access the TPS92622QDRRRQ1 schematic symbol, PCB footprint, and 3D model.
