Texas Instruments provides a recommended PCB layout in the TPS92660PWP/NOPB evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, output current, and operating frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 4.7uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating to ensure it can handle the switching frequency and output current.
The maximum output current of the TPS92660PWP/NOPB is dependent on the input voltage, output voltage, and thermal conditions. While the datasheet specifies a maximum output current of 6A, the actual output current may be limited by the device's thermal performance, PCB layout, and cooling conditions. It's recommended to perform thermal analysis and testing to determine the maximum output current for a specific application.
The TPS92660PWP/NOPB has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by selecting the appropriate resistor values. Additionally, the device also has a hiccup mode that can be enabled to prevent damage from repeated overcurrent events.
The recommended operating temperature range for the TPS92660PWP/NOPB is -40°C to 125°C. However, the device can operate up to 150°C with derated performance. It's essential to ensure proper thermal design and cooling to maintain the device within the recommended operating temperature range for reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92660PWP/NOPB Overview

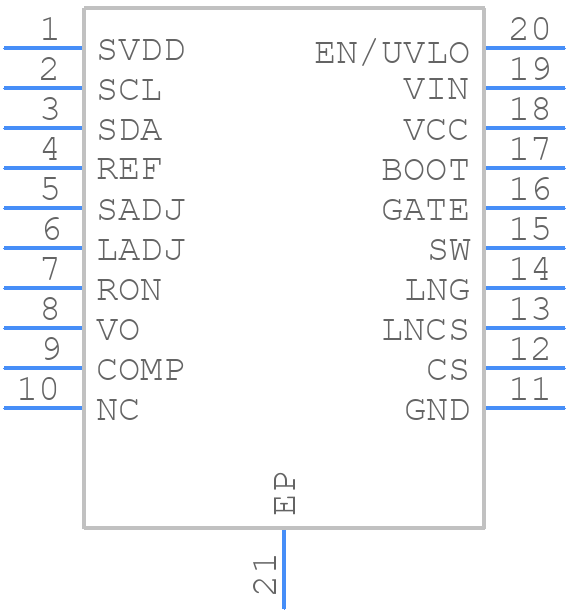

Use the download button to access the TPS92660PWP/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
