Texas Instruments provides a recommended PCB layout in the TPS92690Q1PWPR/NOPB evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value of 10uF to 22uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating to ensure it can handle the switching frequency and output current.
The TPS92690Q1PWPR/NOPB has a maximum ambient temperature rating of 105°C, but the device's junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the TPS92690Q1PWPR/NOPB is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within its specified operating conditions, and follow proper design and testing guidelines to meet the required reliability and quality standards.
To troubleshoot output voltage regulation issues, check the input voltage, output voltage, and output current. Verify that the input voltage is within the specified range, and the output voltage is set correctly using the feedback resistors. Also, ensure that the output current is within the device's specified rating, and check for any signs of overheating or thermal shutdown.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92690Q1PWPR/NOPB Overview

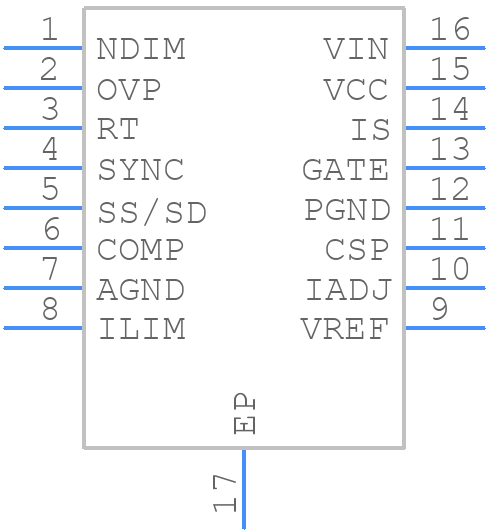

Use the download button to access the TPS92690Q1PWPR/NOPB schematic symbol, PCB footprint, and 3D model.
