TPS929121QPWPRQ1 - Texas Instruments

Description: LED Lighting Drivers 12-channel automotive 40-V high-side LED driver with FlexWire interface 24-HTSSOP -40 to 125

Download TPS929121QPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

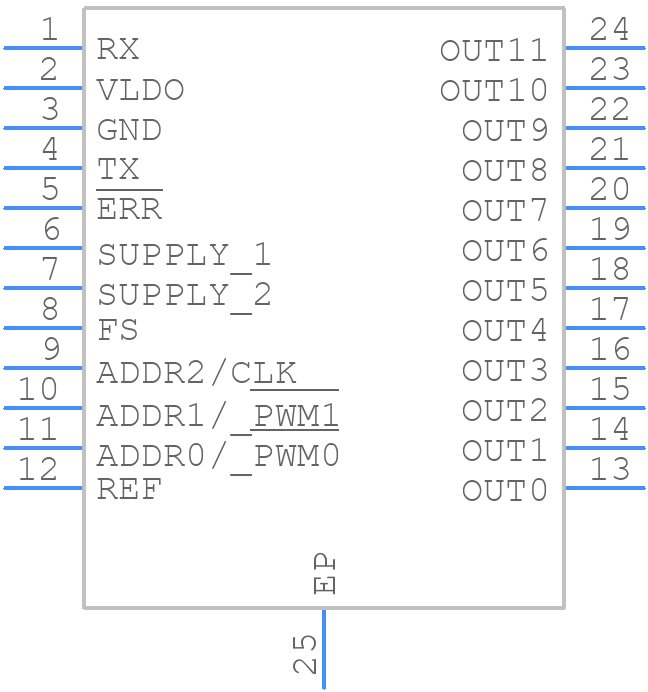

TPS929121QPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS929121QPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024P
click to zoom
3D Models
TPS929121QPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PWP0024P
click to zoom

TPS929121QPWPRQ1 Details

  • Manufacturer Part Number:

    TPS929121QPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Segments:

    36

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    40 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    0.001 MHz

TPS929121QPWPRQ1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal pad connected to a large copper area to improve heat dissipation.
  • Make sure to follow the recommended power-up sequence, which is to apply VCC first, followed by EN and VIN. Also, ensure that the input voltage is within the recommended range and that the device is properly configured through the I2C interface.
  • To minimize EMI and ensure EMC compliance, use a shielded cable for the I2C interface, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, follow good PCB layout practices, such as keeping the power and ground planes separate and using a solid ground plane.
  • Use a logic analyzer or oscilloscope to monitor the I2C interface and verify that the device is receiving the correct commands. Check the input voltage and current to ensure they are within the recommended range. Also, verify that the device is properly configured and that the output voltage is set correctly.
  • The device has a maximum junction temperature of 150°C. Ensure that the device is mounted on a heat sink or a PCB with a solid ground plane to dissipate heat efficiently. Also, consider the thermal resistance of the device and the PCB when designing the thermal management system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS929121QPWPRQ1 Overview

Use the download button to access the TPS929121QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92, or try a keyword search, such as Display Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
