TPSC227K006R0070 - Kyocera AVX

Description: KYOCERA AVX 220μF Electrolytic Tantalum Capacitor 6.3V dc, TPS Series

Download TPSC227K006R0070 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSC227K006R0070 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

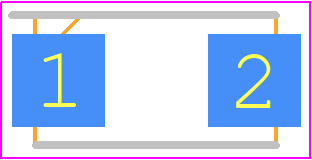

TPSC227K006R0070 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - 2312
click to zoom
3D Models
TPSC227K006R0070 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - 2312
click to zoom

TPSC227K006R0070 Details

  • Manufacturer Part Number:

    TPSC227K006R0070

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    220 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    70 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0139 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    501 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TPSC227K006R0070 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPSC227K006R0070 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • The TPSC227K006R0070 has a high power density, and proper thermal management is crucial to ensure reliable operation. It is recommended to use a thermal interface material (TIM) between the component and the heat sink, and to design a heat sink with a sufficient thermal conductivity to dissipate the heat generated by the component.
  • The maximum operating temperature range for TPSC227K006R0070 is -55°C to +125°C. However, it's recommended to derate the component's power handling capability at higher temperatures to ensure reliable operation.
  • Yes, the TPSC227K006R0070 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent mechanical stress.
  • To ensure the reliability of TPSC227K006R0070 in a humid environment, it's recommended to follow the manufacturer's guidelines for moisture sensitivity and to use a conformal coating or potting compound to protect the component from moisture ingress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSC227K006R0070 Overview

Use the download button to access the TPSC227K006R0070 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSC2, or try a keyword search, such as Tantalum Capacitors
