TPSC227M006R0070 - Kyocera AVX

Description: Cap Tant Solid 220uF 6.3V C CASE 20% (6 X 3.2 X 2.6mm) SMD 6032-28 0.07 Ohm 125C T/R

Download TPSC227M006R0070 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSC227M006R0070 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

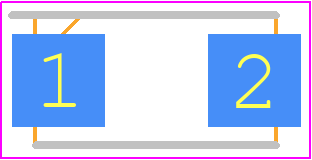

TPSC227M006R0070 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - 2312 (6032 Metric)_2024-1
click to zoom
3D Models
TPSC227M006R0070 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - 2312 (6032 Metric)_2024-1
click to zoom

TPSC227M006R0070 Details

  • Manufacturer Part Number:

    TPSC227M006R0070

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    220 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    70 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0139 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    501 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TPSC227M006R0070 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPSC227M006R0070 is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, TPSC227M006R0070 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating.
  • To prevent damage, handle the component by the edges, avoid touching the terminations, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • The recommended soldering profile for TPSC227M006R0070 is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It's essential to follow the manufacturer's recommended soldering profile to prevent damage.
  • Yes, TPSC227M006R0070 is designed to withstand vibrations up to 10G, making it suitable for applications with moderate vibration. However, it's essential to ensure that the component is properly secured to the PCB to prevent mechanical stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSC227M006R0070 Overview

Use the download button to access the TPSC227M006R0070 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSC2, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
