TPSC336K010R0375 - Kyocera AVX

Description: AVX 33μF SMD Solid MnO2 Tantalum Electrolytic Capacitor, 10 V dc ±10%, TPS Series

Download TPSC336K010R0375 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSC336K010R0375 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

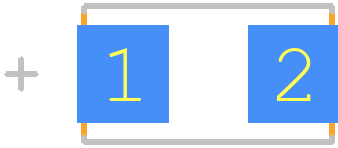

TPSC336K010R0375 - Kyocera AVX PCB footprint - Other - Other - CAPCP6032X280N
click to zoom
3D Models
TPSC336K010R0375 - Kyocera AVX - 3D model - Other - CAPCP6032X280N
click to zoom

TPSC336K010R0375 Details

  • Manufacturer Part Number:

    TPSC336K010R0375

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    33 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    375 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0033 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    10 V

  • Ripple Current:

    217 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TPSC336K010R0375 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPSC336K010R0375 can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
  • The TPSC336K010R0375 has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers should consider using thermal vias, thermal pads, and heat sinks to dissipate heat. Additionally, they should ensure good airflow and avoid blocking airflow around the component.
  • The maximum operating temperature range for TPSC336K010R0375 is -55°C to +125°C. However, the component's performance and reliability may degrade if operated at the extreme ends of this range. Engineers should consider the specific application requirements and ensure the component is operated within a safe temperature range.
  • To ensure the reliability of TPSC336K010R0375 in high-vibration environments, engineers should consider using underfill material to secure the component to the PCB, and ensure the PCB is properly secured to the chassis or enclosure. Additionally, they should consider using vibration-dampening materials and ensure the component is properly soldered and secured to the PCB.
  • The recommended soldering profile for TPSC336K010R0375 is a peak reflow temperature of 260°C, with a dwell time of 20-30 seconds above 220°C. Engineers should ensure the soldering process is controlled to prevent overheating, which can damage the component.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TPSC336K010R0375 Overview

Use the download button to access the TPSC336K010R0375 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSC3, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
