TPSC686K010R0300 - Kyocera AVX

Description: AVX 68μF SMD Solid MnO2 Tantalum Electrolytic Capacitor, 10 V dc ±10%, TPS Series

Download TPSC686K010R0300 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSC686K010R0300 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

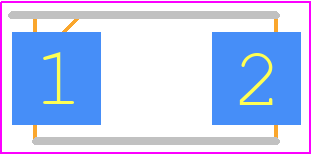

TPSC686K010R0300 - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE C
click to zoom
3D Models
TPSC686K010R0300 - Kyocera AVX - 3D model - Capacitor Moulded Polarised - CASE C
click to zoom

TPSC686K010R0300 Details

  • Manufacturer Part Number:

    TPSC686K010R0300

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    68 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    300 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0068 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    10 V

  • Ripple Current:

    242 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TPSC686K010R0300 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPSC686K010R0300 can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • Yes, the TPSC686K010R0300 is designed to withstand high-vibration environments. Kyocera AVX Components specifies a vibration test condition of 10-2000 Hz, 10 G peak acceleration, and 3 minutes per axis. However, it's recommended to consult with the manufacturer or a qualified engineer to ensure the component meets the specific vibration requirements of your application.
  • The TPSC686K010R0300 has a maximum operating temperature of 125°C. To ensure proper thermal management, it's recommended to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow proper PCB design guidelines for thermal dissipation. Additionally, the component's power rating and thermal impedance should be considered when designing the system.
  • Yes, the TPSC686K010R0300 is compatible with lead-free soldering processes. Kyocera AVX Components specifies a peak reflow temperature of 260°C, which is within the typical range for lead-free soldering processes. However, it's recommended to follow the manufacturer's recommended soldering profile and to ensure that the component is handled and stored according to the manufacturer's guidelines.
  • The typical ESL (Equivalent Series Inductance) of TPSC686K010R0300 is around 1.5 nH, and the typical ESR (Equivalent Series Resistance) is around 30 mΩ. However, these values can vary depending on the frequency and operating conditions. It's recommended to consult the manufacturer's datasheet or application notes for more detailed information.
