TPSE477M006R0050 - Kyocera AVX

Description: Tantalum Capacitor , 2917 470UF 6.3V

Download TPSE477M006R0050 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPSE477M006R0050 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

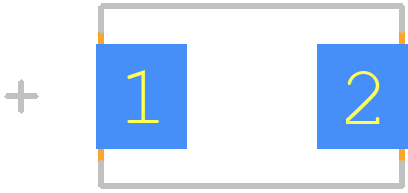

TPSE477M006R0050 - Kyocera AVX PCB footprint - Other - Other - CAPCP7343X430N
click to zoom
3D Models
TPSE477M006R0050 - Kyocera AVX - 3D model - Other - CAPCP7343X430N
click to zoom

TPSE477M006R0050 Details

  • Manufacturer Part Number:

    TPSE477M006R0050

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia, El Salvador

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.98

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    470 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    50 mΩ

  • Height:

    4.1 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.028 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    727 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

TPSE477M006R0050 Frequently Asked Questions (FAQs)

  • The recommended land pattern for TPSE477M006R0050 is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, TPSE477M006R0050 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating.
  • To prevent damage, handle the component by the edges, avoid touching the pads, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
  • The recommended soldering profile for TPSE477M006R0050 is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It's essential to follow the manufacturer's recommended soldering profile to prevent damage.
  • Yes, TPSE477M006R0050 is designed to withstand vibrations up to 10G, making it suitable for applications with moderate vibration. However, it's essential to ensure that the component is properly secured to the PCB to prevent mechanical stress.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TPSE477M006R0050 Overview

Use the download button to access the TPSE477M006R0050 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSE4, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
