TPSF12C1DYYR - Texas Instruments

Description: SOT-23-THIN - 1.1 mm max height

Download TPSF12C1DYYR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

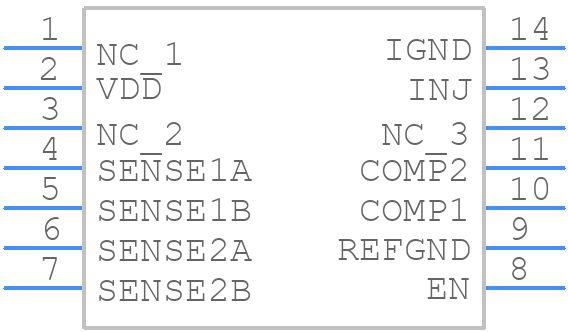

TPSF12C1DYYR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPSF12C1DYYR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOT-23-THIN - 1.1 mm max height *
click to zoom
3D Models
TPSF12C1DYYR - Texas Instruments - 3D model - Small Outline Packages - SOT-23-THIN - 1.1 mm max height *
click to zoom

TPSF12C1DYYR Details

  • Manufacturer Part Number:

    TPSF12C1DYYR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Approvals:

    IEC

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1.1 mm

  • JESD-609 Code:

    e4

  • Length:

    4.3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC/EPOXY

  • Packing Method:

    TR, 13 INCH

  • Rated Current:

    15 A

  • Rated Voltage:

    16 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Width:

    2.1 mm

TPSF12C1DYYR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a thermal pad layout with a minimum of 2 oz copper thickness, and a thermal via array with a minimum of 10 vias under the device to ensure optimal thermal performance.
  • Verify that the input voltage (VIN) is within the recommended range of 2.7V to 5.5V, and the output voltage (VOUT) is within the specified range for the desired output voltage setting. Also, ensure the device is operated within the recommended ambient temperature range of -40°C to 125°C.
  • The maximum output current capability of the TPSF12C1DYYR is 1A. However, the output current should be derated based on the ambient temperature and the device's thermal performance to ensure reliable operation.
  • The output voltage setting can be selected using the VSEL pins. Refer to the datasheet for the VSEL pin configuration table to determine the correct setting for your desired output voltage. The output voltage can be set to 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high (logic level 1), the device is enabled, and when it's pulled low (logic level 0), the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSF12C1DYYR Overview

Use the download button to access the TPSF12C1DYYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSF1, or try a keyword search, such as Data Line Filters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
