Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. Additionally, keeping the PCB traces short and wide can help reduce thermal resistance.
The input capacitor should be selected based on the input voltage ripple, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
According to the datasheet, the maximum output current derating for high ambient temperatures is 1.5A at 85°C and 1A at 105°C. However, it's recommended to consult the thermal derating curve in the datasheet to determine the maximum output current for a specific ambient temperature.
Yes, the TPSI3052DWZR is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended PCB layout, thermal management, and component selection guidelines to ensure the device operates within its specified parameters.
Output voltage instability or oscillations can be caused by inadequate input decoupling, poor PCB layout, or incorrect component selection. To troubleshoot, ensure the input capacitor is properly sized and placed, check the PCB layout for noise coupling, and verify the output capacitor and resistor values are correct. If issues persist, consult the application notes and TI's support resources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSI3052DWZR Overview

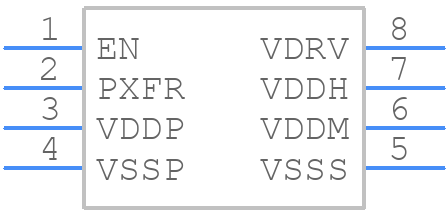

Use the download button to access the TPSI3052DWZR schematic symbol, PCB footprint, and 3D model.
