Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and keeping sensitive nodes away from noise sources.
The TPSI3052QDWZRQ1 is rated for operation up to 125°C. To ensure reliable operation in high-temperature environments, ensure proper thermal management, such as using a heat sink, and follow the recommended operating conditions and derating guidelines.
Operating the TPSI3052QDWZRQ1 at a lower input voltage than the recommended 12V may affect its performance, efficiency, and output voltage regulation. Consult the datasheet for specific guidelines on input voltage range and derating.
To troubleshoot output voltage deviations or instability, check the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout follows good design practices.
The TPSI3052QDWZRQ1 is designed to meet CISPR 25 Class 5 EMI standards. To minimize EMI and RFI, follow good PCB design practices, use shielding, and ensure proper filtering and decoupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSI3052QDWZRQ1 Overview

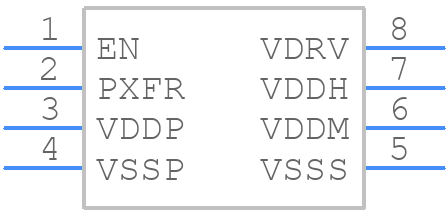

Use the download button to access the TPSI3052QDWZRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSI3,
or try a keyword search, such as MOSFET Drivers
