TPSI3052SQDWZRQ1 - Texas Instruments

Description: Galvanically Isolated Gate Drivers Automotive reinforced isolated switch driver with integrated 15-V gate supply

Download TPSI3052SQDWZRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

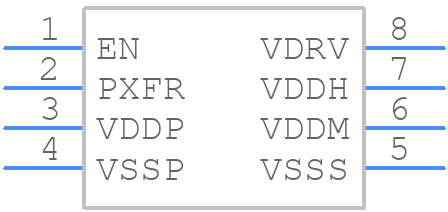

TPSI3052SQDWZRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPSI3052SQDWZRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SO MOD 8 (DWZ)
click to zoom
3D Models
TPSI3052SQDWZRQ1 - Texas Instruments - 3D model - Small Outline Packages - SO MOD 8 (DWZ)
click to zoom

TPSI3052SQDWZRQ1 Details

  • Manufacturer Part Number:

    TPSI3052SQDWZRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max:

    48 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-on Time:

    1 µs

  • Width:

    5.85 mm
