A good PCB layout for the TPSM265R1SILR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the TPSM265R1SILR operates within its SOA during startup and shutdown, it's recommended to use a soft-start circuit to limit the inrush current, and to add a delay between the enable signal and the input voltage to prevent excessive current draw.
The recommended input capacitor type for the TPSM265R1SILR is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation.
To troubleshoot issues with the TPSM265R1SILR, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise and ripple on the input and output. If the issue persists, consult the datasheet and application notes for guidance.
The TPSM265R1SILR is rated for operation up to 125°C, but it's recommended to derate the device's power dissipation at high temperatures. Ensure good airflow, use a heat sink if necessary, and consider using a thermal interface material to improve heat transfer.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM265R1SILR Overview

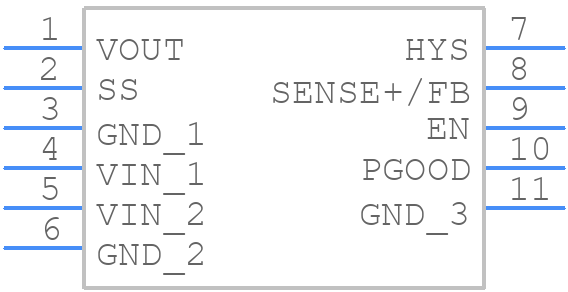

Use the download button to access the TPSM265R1SILR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM2,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
