A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 4-layer PCB with a solid ground plane and a thermal relief pattern can help to dissipate heat efficiently.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Also, ensure the device is operated within the recommended temperature range and that the thermal design is adequate to prevent overheating.
Exceeding the maximum ratings can lead to device failure, reduced lifespan, or even catastrophic failure. It can also cause the device to overheat, leading to a thermal shutdown or permanent damage.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended operating conditions and that the thermal design is adequate. Check for any signs of physical damage or overheating.
To minimize EMI and RFI, use a good PCB layout, ensure proper grounding, and use shielding if necessary. Also, consider using EMI filters or common-mode chokes to reduce electromagnetic interference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM265R1V5SILR Overview

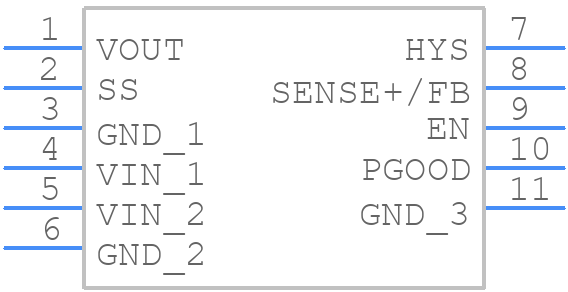

Use the download button to access the TPSM265R1V5SILR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM2,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
