Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, minimizing thermal resistance, and keeping the device away from heat sources.
Verify that the input voltage, output current, and ambient temperature are within the specified ranges. Also, ensure proper thermal management, and consider using thermal monitoring and protection circuits if necessary.
The maximum output current is 3.65A, but it's essential to consider the device's thermal limitations and derate the output current accordingly to prevent overheating.
While the TPSM365R3RDNR is a high-quality device, it's essential to review the device's qualification and certification for specific industries, such as AEC-Q100 for automotive applications. Additionally, consider the device's operating conditions, reliability, and fault tolerance requirements.
The POR and BOR features are designed to ensure the device operates correctly during power-up and brown-out conditions. Ensure that your system design accommodates these features, and consider using external circuitry to handle power-on sequencing and reset signals if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM365R3RDNR Overview

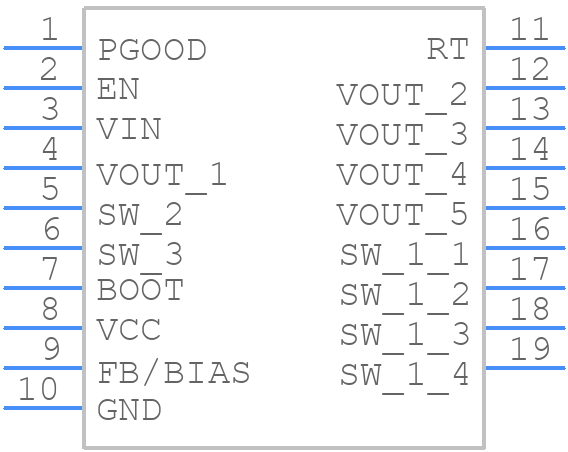

Use the download button to access the TPSM365R3RDNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM3,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
