TPSM53604RDAR - Texas Instruments

Description: Switching Voltage Regulators 36-V, 4-A step-down power module in small 5.5 x 5 x 4mm RLF QFN package with simple footprint 15-B3QFN -40 to 125

Download TPSM53604RDAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

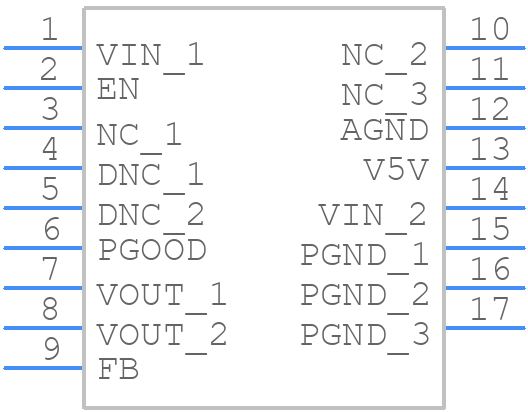

Symbol
TPSM53604RDAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPSM53604RDAR - Texas Instruments PCB footprint - Other - Other - RDA0015A
click to zoom
3D Models
TPSM53604RDAR - Texas Instruments - 3D model - Other - RDA0015A
click to zoom

TPSM53604RDAR Details

  • Manufacturer Part Number:

    TPSM53604RDAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-12-06

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PXMA-N15

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    7 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    4.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPSM53604RDAR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a low-impedance path for the input and output capacitors, and keep the switching node (SW) away from sensitive analog circuits.
  • Use the TI WEBENCH Power Designer tool or the TPSM53604RDAR datasheet's compensation network design guidelines to optimize the compensation network for your specific application. Consider the output capacitor's ESR, output voltage, and desired transient response.
  • The maximum recommended input voltage is 6.5V, but the absolute maximum rating is 7V. Exceeding this voltage may damage the device.
  • Monitor the device's junction temperature, input voltage, and output current to ensure they remain within the specified limits. Use thermal design and layout techniques to minimize thermal resistance and ensure adequate heat dissipation.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7µF and 10µF is recommended. The input capacitor should be placed close to the VIN pin and have a low impedance path to the input voltage source.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSM53604RDAR Overview

Use the download button to access the TPSM53604RDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM5, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
