Description:Power Management Modules -55 C junction, 60-V input, 1-V to 16-V output, 1.5-A power module in enhanced HotRod QFN package 15-B3QFN -55 to 125
The maximum input voltage that can be applied to the TPSM5601R5HEXTRDAR is 6.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended operating conditions to ensure reliable performance.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, using a high-quality output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value can help maintain output voltage stability.
The TPSM5601R5HEXTRDAR can deliver up to 1A of output current. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's essential to consult the datasheet and perform thermal calculations to ensure the device can deliver the required output current.
Proper thermal management is crucial to ensure the reliability and performance of the TPSM5601R5HEXTRDAR. It's recommended to follow the thermal design guidelines provided in the datasheet, including the use of thermal vias, thermal pads, and heat sinks. Additionally, ensuring good airflow and keeping the device away from heat sources can help reduce the junction temperature.
The TPSM5601R5HEXTRDAR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consult the datasheet and perform thermal calculations to ensure the device can operate reliably in the target environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM5601R5HEXTRDAR Overview

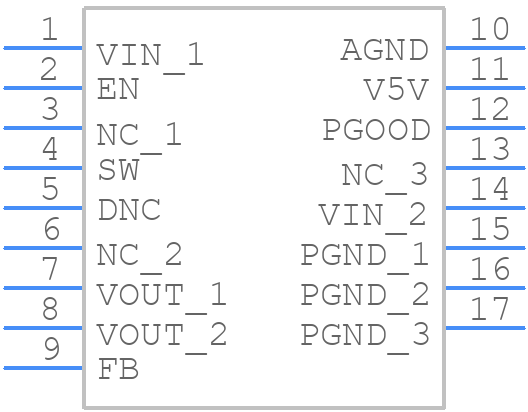

Use the download button to access the TPSM5601R5HEXTRDAR schematic symbol, PCB footprint, and 3D model.
