A good PCB layout for the TPSM5601R5HRDAR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Texas Instruments provides a recommended PCB layout in the datasheet and application notes.
To ensure the TPSM5601R5HRDAR operates within its specified temperature range, provide adequate heat sinking, avoid overheating, and ensure good airflow around the device. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
Exceeding the maximum input voltage rating of the TPSM5601R5HRDAR can cause permanent damage to the device, including overheating, electrical overstress, and reduced reliability. It is essential to ensure the input voltage remains within the specified range to prevent damage and ensure reliable operation.
The TPSM5601R5HRDAR is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. Engineers should consult with Texas Instruments and conduct thorough testing to ensure the device meets the specific requirements of their application.
To troubleshoot issues with the TPSM5601R5HRDAR, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, electrical overstress, or component failure. Consult the datasheet, application notes, and Texas Instruments' support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPSM5601R5HRDAR Overview

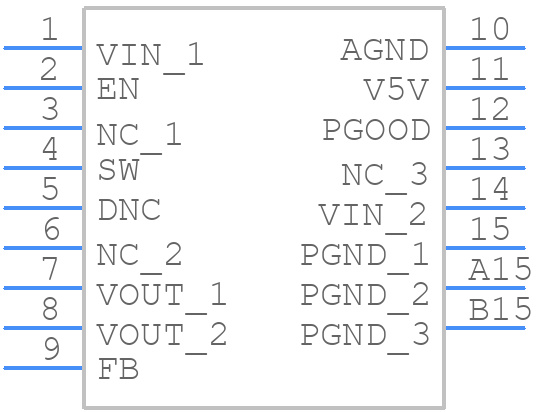

Use the download button to access the TPSM5601R5HRDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM5,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
