A good PCB layout for the TPSM5601R5RDAR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the output capacitors close to the VOUT pin. Additionally, it's recommended to use a star-ground configuration and to minimize the loop area of the input and output traces to reduce EMI.
To ensure the TPSM5601R5RDAR operates within its thermal limits, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink attached to the device. Additionally, ensure good airflow around the device, and avoid blocking the airflow with other components or obstacles.
The recommended input capacitor value for the TPSM5601R5RDAR is 10uF to 22uF, with an X5R or X7R dielectric type. This ensures low ESR and high ripple current capability, which is essential for the device's stability and performance.
The TPSM5601R5RDAR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to derate the device's output current and ensure adequate heat sinking to prevent overheating. Consult the datasheet and application notes for more information.
To troubleshoot issues with the TPSM5601R5RDAR, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component placement for any errors or omissions. Use an oscilloscope to measure the output voltage ripple and noise. Consult the datasheet, application notes, and Texas Instruments' support resources for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM5601R5RDAR Overview

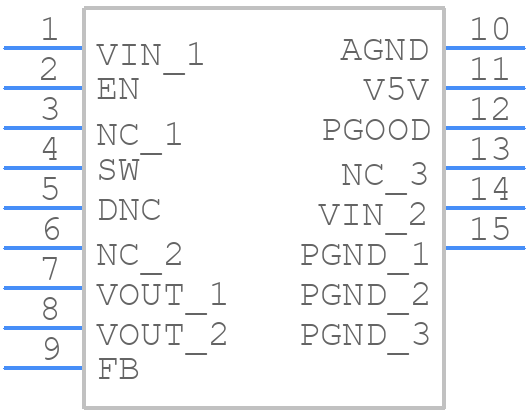

Use the download button to access the TPSM5601R5RDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM5,
or try a keyword search, such as Switching Regulator or Controllers
