Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
To ensure accurate and stable output voltage, it's essential to follow the recommended input and output capacitor values, and to use a high-quality output capacitor with low ESR. Additionally, the input voltage should be well-regulated and free of noise.
While the datasheet specifies a maximum input voltage of 6.5V, it's recommended to derate the input voltage to 6.2V or lower to ensure reliable operation and to prevent damage to the device.
The TPSM5601R5SRDAR has a thermal pad that should be connected to a solid ground plane or a thermal vias to dissipate heat. Additionally, the device should be placed in a well-ventilated area, and the PCB should be designed to allow for good airflow.
The recommended input capacitor value is 10uF, and it should be a low-ESR ceramic capacitor, such as an X5R or X7R type, to ensure stable operation and to filter out high-frequency noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM5601R5SRDAR Overview

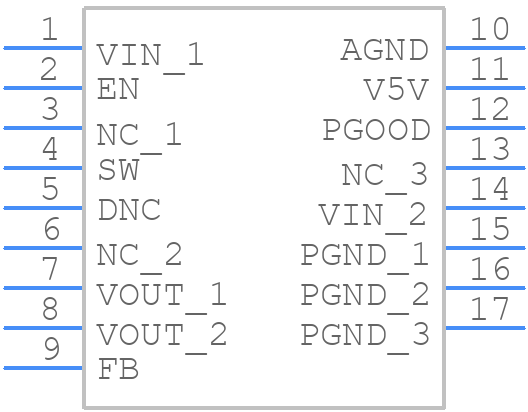

Use the download button to access the TPSM5601R5SRDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM5,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
