Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device.
The TPSM560R6HRDAR is rated for operation from -40°C to 125°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and keeping the device away from heat sources. Monitor the device's temperature using the thermal monitoring pin (TMP) or an external temperature sensor.
The TPSM560R6HRDAR can deliver up to 6A of output current. However, the maximum current capability depends on the input voltage, output voltage, and ambient temperature. Refer to the datasheet's electrical characteristics table and thermal derating curves to determine the maximum output current for your specific application.
The TPSM560R6HRDAR is a adjustable output voltage regulator. To configure the output voltage, connect a resistor divider network between the output voltage pin (VOUT) and the ground pin (GND). The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
The enable pin (EN) is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. Use the EN pin to implement power sequencing, shutdown, or low-power modes in your system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM560R6HRDAR Overview

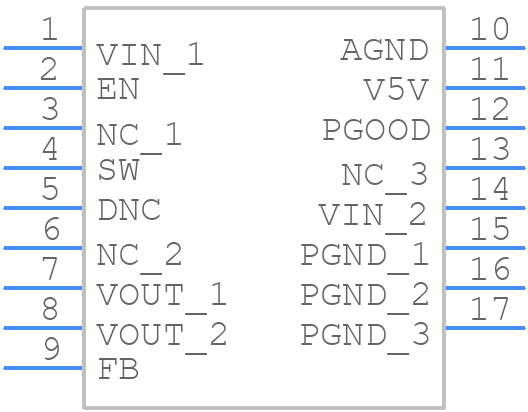

Use the download button to access the TPSM560R6HRDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM5,
or try a keyword search, such as Switching Regulator or Controllers
