Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage drops and ensure stable operation. Output capacitors should have low ESR and high capacitance to filter output voltage ripple. Consult the datasheet and capacitor manufacturer's recommendations for specific values and types.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the maximum ambient temperature for reliable operation. TI recommends derating the device's power dissipation to ensure reliable operation above 85°C. Consult the datasheet and thermal design guidelines for more information.
To ensure EMC compliance, follow good design practices, such as using a shielded enclosure, keeping the DC-DC converter away from sensitive circuits, and using EMI filters or common-mode chokes on the input and output lines. Consult the datasheet and relevant EMC standards (e.g., CISPR 22) for more information.
While the datasheet specifies an input voltage range of 2.7V to 5.5V, it's recommended to operate the device within the 3.3V to 5V range for optimal performance and efficiency. Operating outside this range may affect the device's reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM63602RDHR Overview

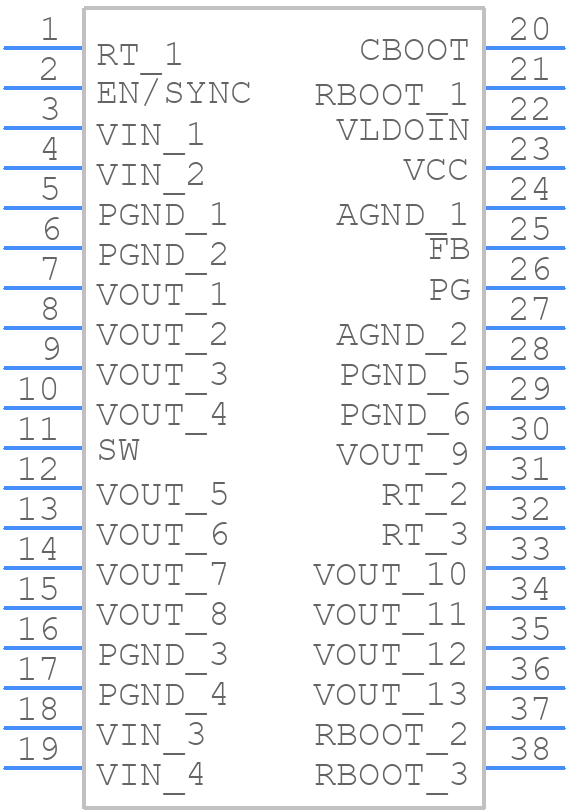

Use the download button to access the TPSM63602RDHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM6,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
