Texas Instruments provides a recommended PCB layout in the TPSM63603V3RDHR evaluation module documentation, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance, low noise, and high efficiency.
The selection of the inductor depends on the specific application requirements, such as output voltage, current, and frequency. Texas Instruments recommends using inductors with a high saturation current, low DC resistance, and a suitable inductance value. The datasheet provides a list of recommended inductors, and further guidance can be found in the application notes and design guides.
The TPSM63603V3RDHR is rated for operation up to 85°C ambient temperature, but it's essential to consider the thermal derating and ensure proper heat sinking to maintain a safe operating temperature. The junction temperature (TJ) should not exceed 125°C.
The TPSM63603V3RDHR is an industrial-grade module, but it's not specifically designed for high-reliability or automotive applications. For such applications, Texas Instruments offers other modules with enhanced reliability and compliance features, such as the TPSM63603QV3RDHR-Q1, which is AEC-Q100 qualified.
Texas Instruments provides a troubleshooting guide in the datasheet and application notes, which covers common issues and their possible causes. Additionally, engineers can use tools like oscilloscopes and thermal cameras to diagnose problems. It's also recommended to consult the Texas Instruments support forum or contact their technical support team for assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM63603V3RDHR Overview

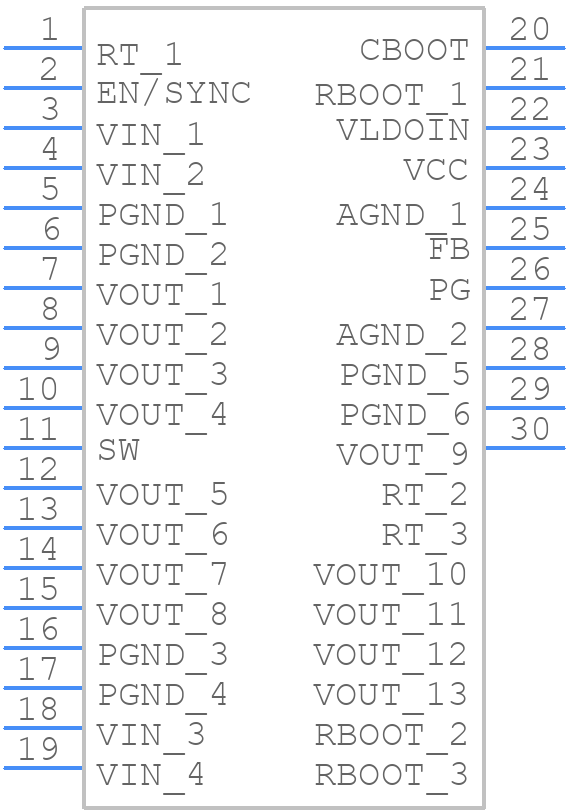

Use the download button to access the TPSM63603V3RDHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM6,
or try a keyword search, such as Switching Regulator or Controllers
