Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage drops and ensure stable operation. Output capacitors should have low ESR and high capacitance to filter output voltage ripple. Consult the datasheet and capacitor manufacturer's recommendations for specific values and types.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the maximum ambient temperature for reliable operation. Typically, it's recommended to derate the device's performance by 1°C/W above 25°C to ensure reliable operation. Consult the thermal design and derating guidelines in the datasheet.
Follow the recommended power-up and power-down sequences in the datasheet to prevent damage or malfunction. Ensure that the input voltage is stable and within the recommended range before enabling the device, and follow the recommended shutdown procedure to prevent voltage spikes or oscillations.
To minimize EMI and noise, use a solid ground plane, keep the input and output capacitors close to the IC, and use shielded cables or twisted pairs for input and output connections. Additionally, consider using EMI filters or common-mode chokes to reduce radiated emissions and conducted noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM63603V5RDHR Overview

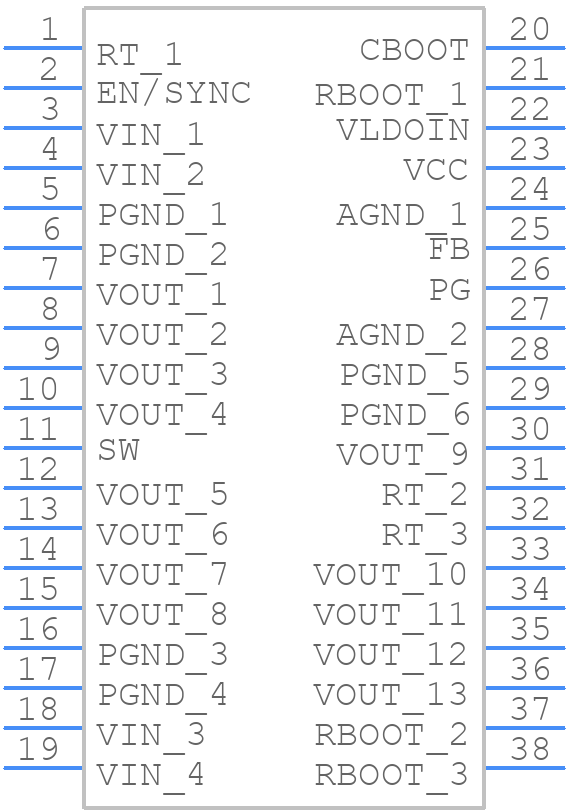

Use the download button to access the TPSM63603V5RDHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM6,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
